Tioga

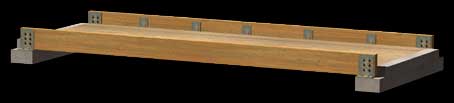

Moosman Bridge’s Tioga Bridge is clean and straight forward. Douglas Fir select structural beams, steel I-beam cross members and Douglas Fir decking comprise this sleek uncluttered bridge. A variety of custom railings are options with the Tioga.

.

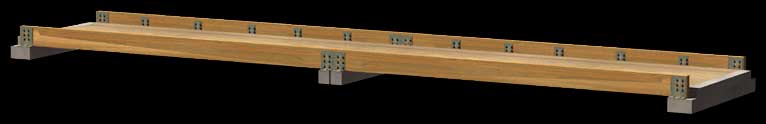

Built with 6” x 18” select structural Douglas Fir beams, steel I-beam cross members and 3” x 12 Douglas Fir decking. This bridge gives the total wood look with no fasteners exposed. Available in spans up to 25’ with 85 psf and 25’ to 31’ with 50 psf. Spans 31’ to 40’ are available at 85 psf by special order. The Tioga is easily adaptable for multiple span usages.






.
